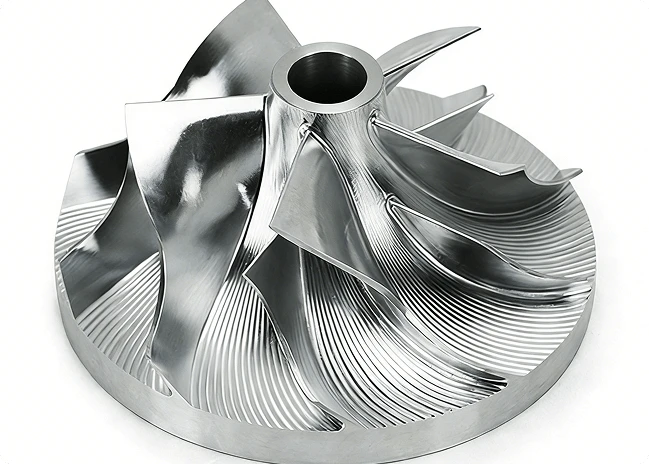

5-axis CNC Machining High Precision Aluminum Impeller Project
| Material | Aluminum 6061-T6 |
| Technology | 5-Axis CNC Machining |
| Tolerance | ±0.01mm |
| Surface Finish | As Machined |
| Quantity | 1 Piece |
| Lead Time | 2 Days |
Technological Challenges
Precision is paramount for impeller performance, as even minimal deviations can significantly impact functionality. While the complex geometries make it challenge to achieve the exceptional precision for conventional 3-axis machining, due to multiple setups and manual re-clamping will compromise the dimensional accuracy and surface quality required.
Kingco’s Precision Machining Solution
Kingco adopts an advanced 5-axis precision machining process, enabling one-setup machining without the need for additional fixtures. This approach not only guarantees superior surface quality and strict adherence to the ±0.01mm tolerance for the impeller but also enhances production efficiency and reduces overall costs.
Aluminum is an ideal choice for impeller manufacturing, boasting a lightweight structure, high strength, and excellent corrosion resistance. Our optimized machining strategies are designed to fully leverage these material properties, delivering impellers that meet the highest standards of performance and reliability.
Machining Process

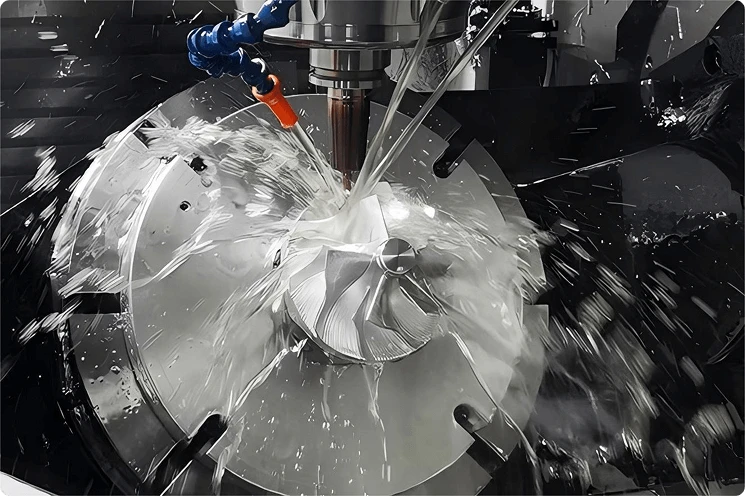

First of all, the blank is securely clamped onto the worktable of the 5-axis machining center to ensure stability during machining. Subsequently, roughing is performed using a bull-nose cutter with a cycloidal milling strategy to remove the majority of the blank allowance while minimizing tool load. Next, a ball-end mill is employed to carry out precision finishing on complex surfaces such as blade profiles, following preset machining programmed toolpaths to achieve the required surface finish and contour accuracy. Finally, the machine's on-machine inspection function is utilized to automatically measure critical dimensions of the finished impeller, verifying machining accuracy and ensuring the product fully complies with design specifications.
Conclusion
Kingco is a trusted partner for producing high-precision prototypes and custom parts. Equipped with several dozens of advanced 3-axis and 5-axis machining centers, coupled with a professional team boasting rich industry experience, we are capable of providing fast, flexible, and precise solutions tailored to your projects from prototyping to production. Contact us to start your new projects!
