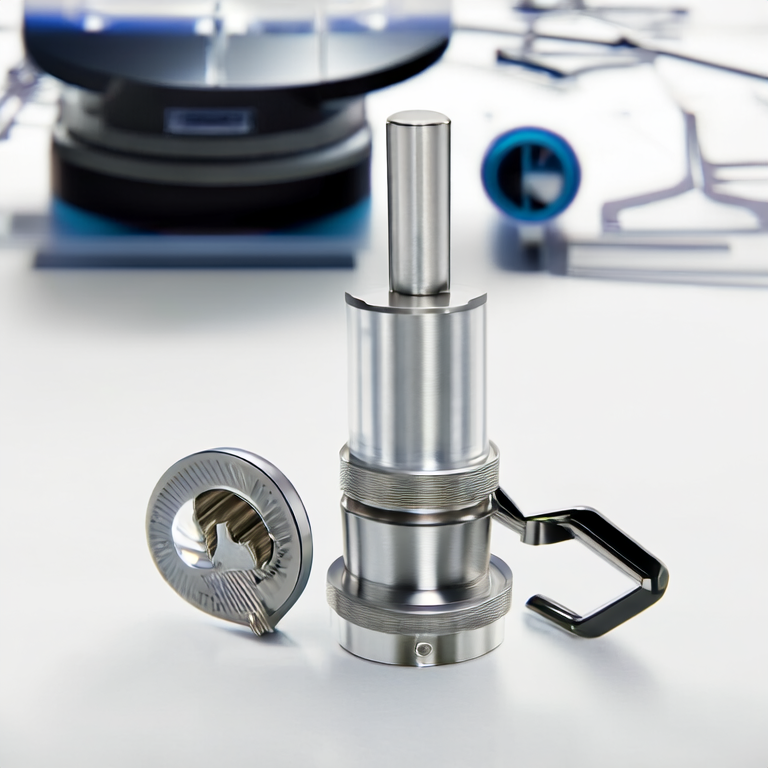

How CNC Rapid Prototyping Speeds Up Medical Device Development Cycles

Understanding the Benefits of CNC Rapid Prototyping in Medical Devices

1. Speed: Reduce Development Timeframes

CNC rapid prototyping allows for quick iterations of design, significantly shortening the time it takes to move from concept to usable product. By using CNC machines, developers can produce multiple prototypes in a fraction of the time traditional manufacturing methods would require.

2. Precision: Achieve High Manufacturing Tolerances

One of the key advantages of CNC technology is its ability to create intricate designs with a high degree of accuracy. This is particularly important in medical devices where even the smallest variances can impact functionality and safety.

3. Cost Efficiency: Minimize Production Costs

Investing in CNC rapid prototyping can lead to significant cost savings over time. Early detection of design flaws through rapid prototyping reduces expenses related to redesign and re-manufacturing later in the development process.

4. Flexibility: Easily Adapt Designs

CNC machines are capable of producing prototypes from a wide variety of materials and can easily switch between different designs. This adaptability allows developers to respond quickly to feedback and modify their designs accordingly.

5. Testing: Streamlined Validation Processes

Rapid prototypes can be manufactured and tested more frequently, providing far more data for validation. The ability to test designs early and often helps ensure compliance with regulatory requirements.

Step-by-Step Guide to CNC Rapid Prototyping for Medical Devices

1. Define Your Device Requirements

Start by outlining the specific requirements and features that your medical device must meet. This includes:

• Functional requirements
• Material specifications
• Regulatory compliance needs

2. Create the Initial Design

Using CAD software, develop your initial design. Ensure it considers the precise tolerances required in medical applications. Popular software can include:

• SolidWorks
• AutoCAD
• Fusion 360

3. Select Appropriate Materials

Choose materials that meet the functional and regulatory requirements. Common materials used in CNC machining for medical devices include:

• Medical-grade plastics
• Metals like stainless steel and titanium
• Silicone for soft touch applications

4. Prepare the CNC Machine

Set the CNC machine with the proper settings based on the selected material. This includes:

• Tool selection
• Feed and speed rates
• Cutting depth

5. Simulate the Tool Path

Run a simulation in your CNC software to predict and verify the machining process. This step helps avoid potential issues and optimizes the workflow.

6. Execute the Machining Process

Start the CNC machine and monitor its operation. Ensure to track any anomalies or issues during the machining process.

7. Post-processing and Finishing

After machining, conduct necessary post-processing to improve the surface finish or to assemble components.

• Sanding or polishing
• Assembly of different parts

8. Testing and Iteration

Evaluate the prototypes through rigorous testing to ensure they meet all requirements. If issues are found, iterate on the design and reproduce new prototypes quickly.

Common Mistakes to Avoid in CNC Rapid Prototyping

1. Inadequate Design Preparation

Failing to fully define requirements before starting can lead to costly redesigns. Always invest time in thorough planning.

2. Ignoring Material Properties

Selecting the wrong material can impact device performance. Always match material properties with intended use conditions.

3. Neglecting Regulatory Standards

Not designing for regulatory compliance can lead to failed products. Ensure all designs meet necessary standards from the outset.

4. Skipping Testing Phases

Testing and validation cannot be overlooked. Always incorporate tests at multiple stages of the prototyping process to catch issues early.

Conclusion: Why Choose KINGCO for Your CNC Prototyping Needs

By integrating CNC rapid prototyping into your medical device development cycles, you can significantly accelerate timelines, ensure precision, and maintain cost efficiency. At KINGCO, we specialize in delivering high-quality CNC prototyping services tailored to the medical device industry. Trust us to help transform your ideas into functioning prototypes swiftly and effectively.
