5-Axis Machining Services at Kingco
Kingco’s 5-axis machining services deliver unparalleled flexibility for designs with complex geometries and high-precision requirements. Our experienced engineering team and advanced manufacturing resources enable the rapid fabrication of complex, time-sensitive components. Equipped with world-class 5-Axis machines, deep expertise, and proven experience, Kingco has the capability to produce top-quality 5-Axis machined parts, from rapid prototyping to end-use parts for safety-critical applications.
Why Choose Kingco’s 5-axis CNC Machining Services?
High Quality
Our expert machining technology and CMM inspection ensure dimensional accuracy and consistent quality from prototype to production.
On-Demand Production
We support your projects at any volume, from single prototypes to high-volume runs of 10,000+ parts.
Speed & Efficiency
Our advanced processes accelerate production, helping you meet tight deadlines without compromising quality.
Complex Geometries
We specialize in manufacturing intricate and challenging designs with high precision.
Material Versatility
We machine a wide selection of metals, plastics, and composites to meet diverse application needs.
Expert Partnership
Our experienced team provides end-to-end guidance from design to delivery, ensuring your project's success.
Our 5-Axis CNC Machining Capabilities
Our ISO 9001 certified processes and state-of-the-art 5-axis machining technologies ensure to get high-quality, intricate parts that reliably meet the tightest tolerances with exceptional accuracy.
|
|
Description |
|
Max part size |
390*510*300（mm） |
|
Mini part size |
5*5*5（mm） |
|
General tolerance |
ISO-2768-m for plastic machined parts, ISO-2768-f for metal machined parts |
|
Precision tolerance |
±0.003 mm |
|
Lead time |
Standard projects are typically completed within 3-5 working days. More complex requirements may take up to 2 weeks. |
Simultaneous 5 Axis vs. 3+2 Axis CNC Machining
5-Axis CNC machining excels at precision complex parts, while 3+2 Axis CNC machining balances cost-efficiency and versatility for semi-complex components.

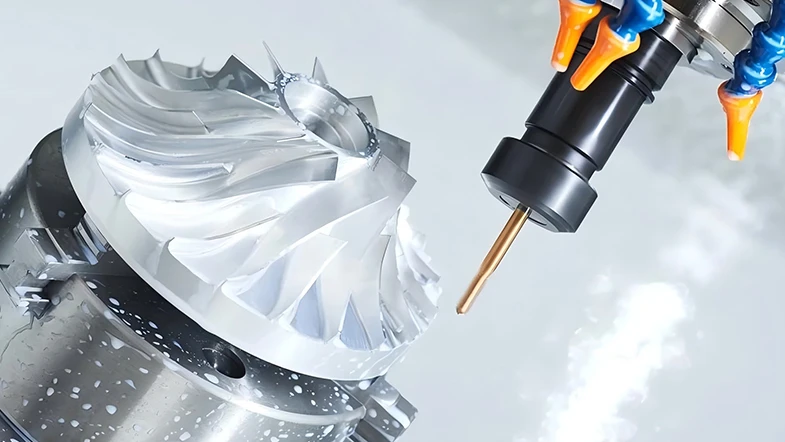

5-Axis CNC machining

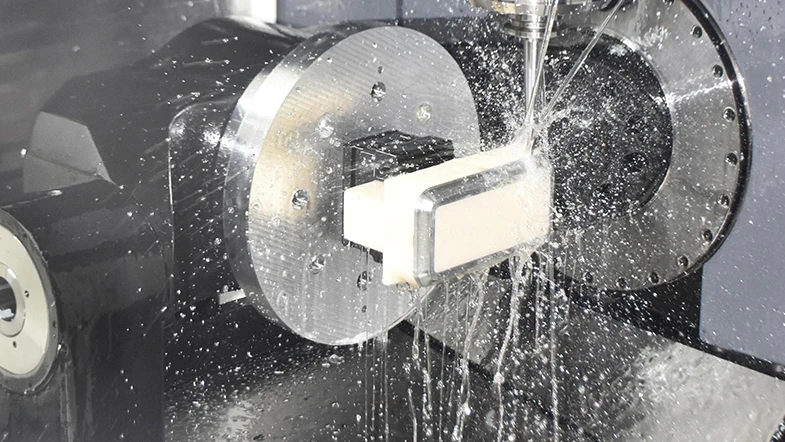

3+2 Axis CNC machining
|
|
Simultaneous 5-Axis Machining |
3+2 Axis Machining (Positional 5-Axis) |
|
Movement |
All five axes (X, Y, Z, A, B) move continuously and simultaneously in a coordinated manner during the cutting process. |
The two rotational axes (A, B) first tilt and lock the tool or workpiece to a fixed angle. Cutting is then performed by the three linear axes (X, Y, Z) in a 3-axis mode; the rotary axes remain stationary during machining. |
|
Machining Stability |
Maintains a more stable tool engagement and load, resulting in superior surface finish. However, the dynamic process places extremely high demands on machine accuracy, control systems, and programming. |
Essentially 3-axis machining, offering high stability with lower requirements for the machine and programming. However, cutting parameters may need adjustment for different tilt angles. |
|
Suitable Parts |
- Complex 3D contoured components (e.g., aerospace turbine blades, impellers, curved medical implants). |
- Multi-faceted parts (e.g., mold bases, brackets, housing components) with features on multiple angled faces. |
|
Recommended Industries |
Aerospace & Defence, Medical, Energy, Precision Mold&Die |
General Machinery, Electronics, Automotive |
Advantages of 5-Axis CNC Machining
Compared to traditional 3-axis machining, the core advantages of 5-axis CNC machining lie in its unparalleled flexibility, precision, and efficiency for complex projects.
Complex Geometric
Capable of machining parts with complex surfaces, deep cavities, and undercuts (e.g., impellers, turbine blades) in a single setup.

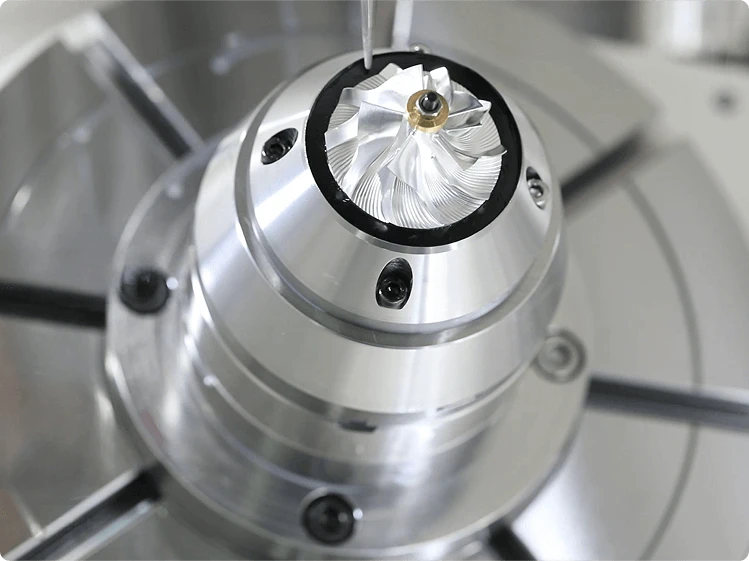

High Precision
A single setup avoids handling errors from repeated, plus our in-process inspection system performs real-time monitoring of part dimensions.
Superior Surface Finish
Allows the use of shorter tools and maintains the optimal cutting angle, improving surface finish while reducing tool vibration and wear.
Improved Efficiency
Enables direct machining of inclined surfaces and holes by tilting the spindle or table, eliminating time for multiple setups and fixture adjustments.
Cost-Effectiveness
Reduces the need for complex dedicated fixtures, better tool paths and machining strategies can reduce waste material.
Unmatched Flexibility
Faster programming and adjustments for parts with multi-angle features, making it ideal for prototyping, small-batch & full-scale production.
CNC Machining Materials
Kingco offers a diverse range of high-quality materials for custom CNC machined parts to meet the unique needs of every engineering project, including plastic, metal, glass, wood and composite. Below is our standard list of material using for CNC Machining services:
METALS
If you need any customized materials, pls contact to our expert.
Aluminum
Aluminum is valued for its high strength-to-weight ratio and corrosion resistance, making it a leading choice for lightweight, durable machined components.
Alloys:
Aluminum 6061
Aluminum 6061-T6
Aluminum 7075
Aluminum 7075-T6
Aluminum 6063
Aluminum 6082
Aluminum 5052
Aluminum 2024
Stainless Steel
Stainless steel offers high strength, exceptional corrosion resistance, and excellent toughness, serving as a versatile material across a wide range of applications.
Alloys:
Stainless Steel 301
Stainless Steel 303
Stainless Steel 304
Stainless Steel 316
Stainless Steel 316L
Stainless Steel 416
Stainless Steel 420
Stainless Steel 430
Stainless Steel 17-4 PH
Steel
Steel is a strong and versatile material with high tensile strength, well-suited for structural components. It is available in multiple subtypes to meet specific requirements.
Alloys:
Carbon Steel
Alloy Steel
Die Steel
Tool Steel
High Speed Steel
Structured Steel
Titanium
Titanium combines a high strength-to-weight ratio, low thermal expansion, outstanding corrosion resistance, and biocompatibility, making it ideal for aerospace, medical implants, and precision machining.
Alloys: Titanium Alloy TA1, Alloy TA2, Alloy TC4/Ti-6Al 4V
Brass
Brass provides excellent electrical and thermal conductivity, favorable mechanical properties, and an attractive golden appearance, which makes it suitable for electrical components and decorative items.
Alloys: C260, C360, H59, H62
Copper
Copper is an efficient conductor of heat and electricity, with high malleability, good corrosion resistance, and natural antimicrobial properties. It is widely used in electrical and electronic applications.
Alloys: C1100, C1020, C101
Bronze
Bronze, an alloy of copper and tin, is known for its durability and corrosion resistance. Its strength and ability to withstand harsh environments make it common in marine hardware, sculptures, and bearings.
Magnesium
Magnesium is the lightest structural metal, offering a high strength-to-weight ratio, good machinability, and excellent vibration damping, it is ideal for weight-sensitive applications.
PLASTICS
ABS
ABS is a tough, durable thermoplastic with good processability. It is widely used in automotive parts, consumer electronics, and medical equipment.
PC
PC (Polycarbonate) is a strong, impact-resistant plastic with high transparency and heat resistance, commonly used in eyewear lenses, electronics, automotive parts, and safety equipment.
PMMA (Acrylic)
PMMA is a transparent, lightweight plastic with excellent optical clarity and high UV resistance, often applied in lenses, displays, light covers, and signage.
POM (Acetal, Delrin)
POM is a strong, low-friction plastic suitable for gears, bearings, automotive parts, and precision mechanical components.
PA (Nylon)
PA is a strong, wear-resistant plastic with good chemical resistance, commonly used in gears, bearings, automotive parts, and industrial machinery components.
PE
Polyethylene is a lightweight, chemical-resistant plastic with low friction, commonly found in household items and lightweight parts.
PEEK
PEEK is a high-performance thermoplastic with excellent strength, heat resistance, and chemical stability, designed for demanding applications in aerospace, medical implants, and other extreme environments.
PP
Polypropylene is a versatile, lightweight plastic with good chemical resistance and flexibility, used in packaging, automotive parts, textiles, and consumer goods.
PTFE (Teflon)
PTFE offers non-stick properties, high-temperature resistance, and low friction, making it suitable for applications requiring stability under thermal and chemical exposure.
PA+GF30%
This glass-fiber reinforced nylon provides high strength, stiffness, dimensional stability, and heat resistance, making it perfect for mechanical components that demand enhanced performance.
5-axis CNC Machining Surface Finishing Services
Diverse surface finishes are available in Kingco, designed to eliminate machining marks, enhancing both functionality, aesthetics for superior-quality parts.
As machined
Sanding
Brushing
Mirror polishing
Sandblasting
Anodizing
Painting
Powder-coating
PVD coating
Plating
Passivation
Black oxide
E-Coating
Laser etching
Silk-screen
5-Axis CNC Machining Solutions at Kingco

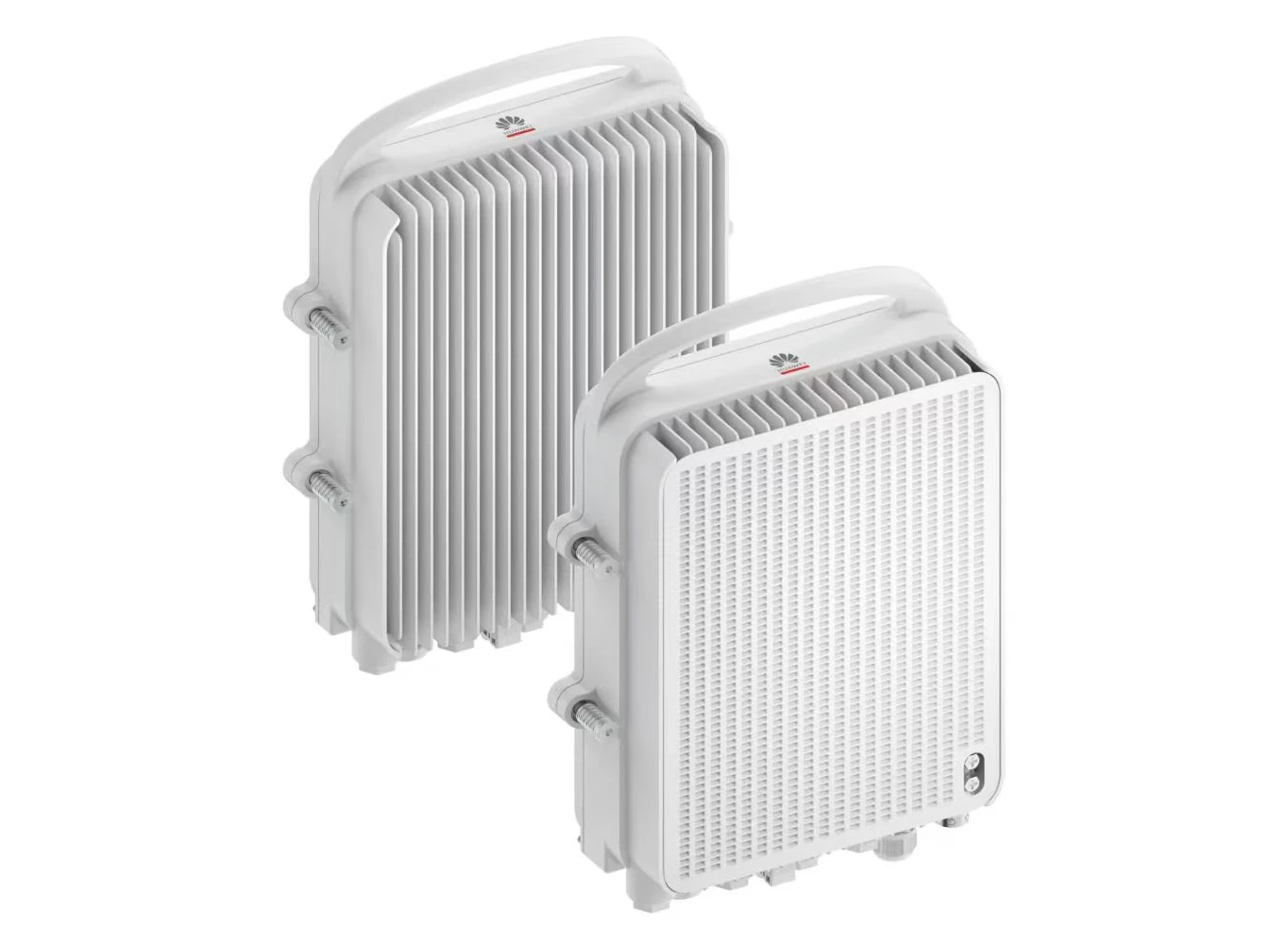

Prototyping
Prototyping
Our rapid 5-axis CNC machining services are engineered to accelerate product development schedules. Featuring fast and reliable turnaround times, we specialize in the rapid, high-precision manufacturing of prototypes and mold tooling, which provides strong support for your design verification and validation procedures.

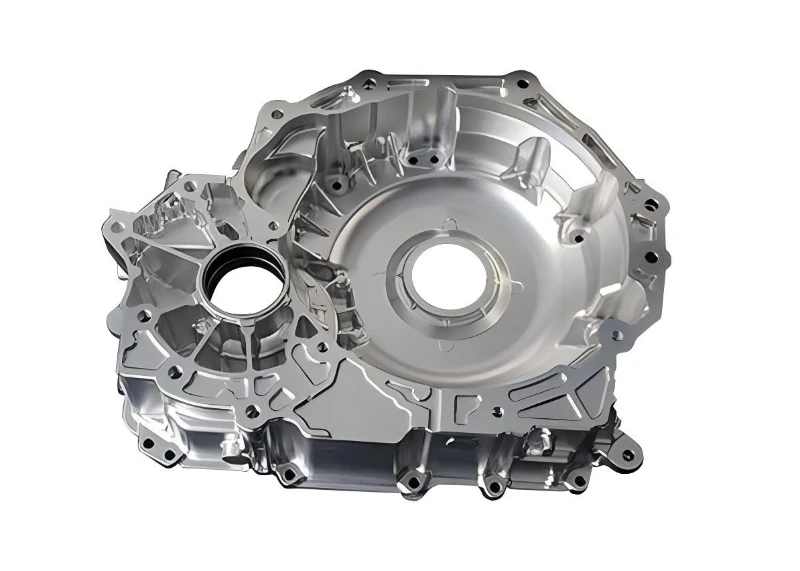

Production
On-demand Production
We are fully capable of fulfilling both small-batch and large-scale production demands. Equipped with rigorous tolerance control systems and comprehensive in-house machining capabilities, we can flexibly adapt to your specific volume requirements while maintaining uncompromised quality standards throughout the entire production process.
5-Axis CNC Machining Applies To Various Industries
Kingco's CNC machining capabilities are customer-validated and meet the precision requirements of diverse industries. We specialize in delivering high-performance machined parts for a wide range of applications, serving sectors including but not limited to the following:
Let's Build Your Ideas Into Precision Reality Today!
